OptiSurface Newsletter – 2019 February

If you can't see any images here, click 'Display images..' in your email software.
Welcome to the February 2019 OptiSurface Newsletter.

In our News we have released OptiSurface Designer V2.7.14.

The Design Of The Month demonstrates the design thought process for fixing ponding issues due to micro furrows.

The Feature Of The Month shows subzones and how to use them in OptiSurface 2Way.

If you have any problems or questions please reply to this email or call me on +61 405-686-425 (Australia) or Preston on +1 870-340-2020 (USA).
Regards
Graeme Cox & The OptiSurface Team
DAVCO OptiSurface
Mobile: +61 405 686 425   Skype: graemejcox
Web:  www.optisurface.com
News: www.twitter.com/OptiSurface
“Celebrating One Million Acres of Optimized Agricultural Earthworks”

P.S. If you haven’t taken advantage of OptiSurface yet, we’re offering a special service where we will take your topographic data for a field and conduct some FREE analysis and design.  Go here to find out more: http://www.optisurface.com/nlt/

News Of The Month

From our Twitter and Facebook feeds.


OptiSurface‏ @OptiSurface Jan 2

OptiSurface Testimonial: “Every field I have OptiSurfaced, I haven’t had to replant anything (due to drown outs). That’s pretty cool! I’ve also got rid of dozens of surface drains (inlet pipes)” – Jeff Kelly, Illinois, USA
If you can't see any images here, click 'Display images..' in your email software.

OptiSurface‏ @OptiSurface Jan 11

OptiSurface Designer Version 2.7.14 is available to all licensees free of charge. Download it and see all improvements here: https://buff.ly/2QAElg1
If you can't see any images here, click 'Display images..' in your email software.


OptiSurface‏ @OptiSurface Jan 16

Precision surface drainage with OptiSurface in the Netherlands thanks to Agrometius and Contractor W.Huybregts. See Video here: https://youtu.be/3Uaj-Dtd-tM via @YouTube
If you can't see any images here, click 'Display images..' in your email software.

Design Of The Month

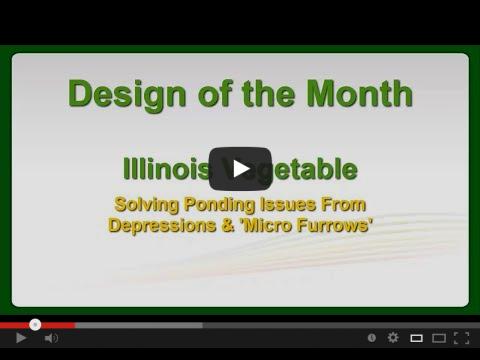

Solving Ponding Issues From Depressions & ‘Micro Furrows’

A 38ac (16ha) field has ponding issues due to depressions which are exacerbated by micro furrows created by wheel traffic. Machinery wheel tracks create small ruts about an inch high (25mm) which restricts drainage across the traffic direction.

There are existing drainage inlet pipes in the field but the plan was to reduce the number if possible and solve the ponding issues.

See video below.

Feature Of The Month

Subzones and Slope Parameters
Overview:  Subzone is a unique feature of OptiSurface Designer wherein the designer can customize an area or section of the field. The subzone overwrites the boundary parameters allowing the designer to tell OptiSurface how the area should behave.

In the video shown above, two types of subzones are used – Ridge to define the highest points in the field and Valley subzones to define the tail drain.
Ridge: This is a special type if subzone that behaves like a barrier, preventing water to flow to the subzone. It can also apply different design parameters. Note: The ridge subzone should ideally extend to just outside the boundary zone and go back from one side of the boundary to the other to work well. Only effective when used OptiSurface 2Way and OptiSurface 4Way.
Valley: This is a special type of subzone used to guide water to flow to a desired direction. It can also apply different design parameters. Note: The valley subzone should extend to just outside the boundary zone. Only effective when used OptiSurface 2Way and OptiSurface 4Way.
Subzone Slope Parameter: The parameters in the subzone can be ticked ON to overwrite the parameters set in the boundary.

In the video above, the Cross Slope was used for the tail drains forcing it to fall in a certain direction. This is always in reference to the Main Slope Arrow. Forcing the subzone to fall in one direction requires the Min Cross Slope and Max Cross Slope defined and with the same symbol (+ or -). Only effective when used in OptiSurface 1Way and OptiSurface 2Way.

Refer A Friend
Give a friend $200 off OptiSurface and get rewarded with $200 Amazon Gift Card yourself!  Start Here.

Classifieds
We have clients looking for experienced earthmoving operators in Africa, France, Australia and USA. If you’re interested, contact support@optisurface.com
